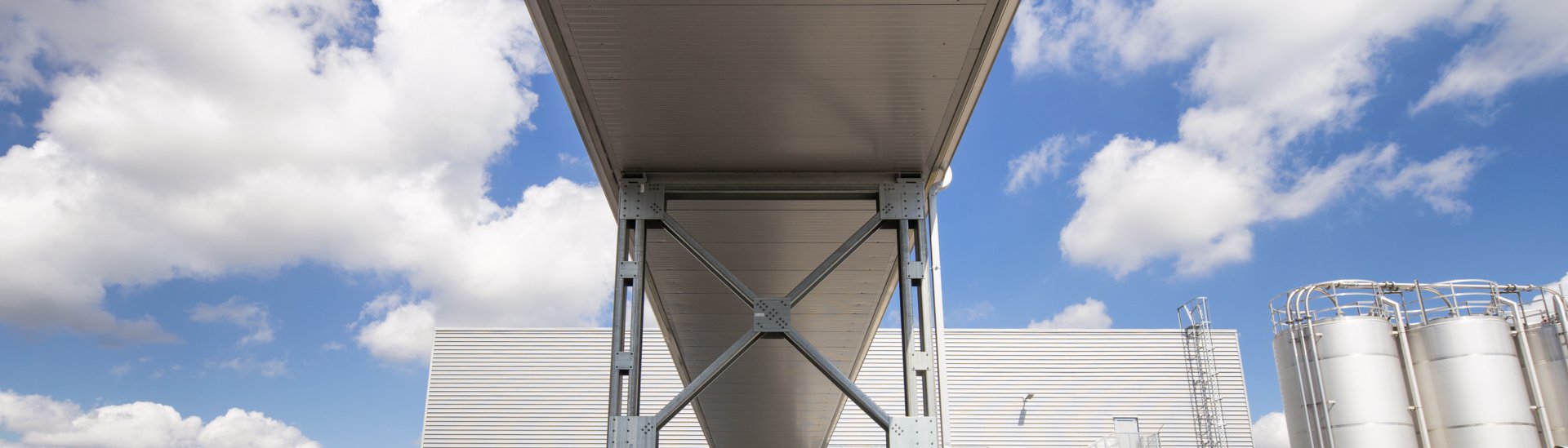

Steel buildings technical information, CZ0741 Rimowa bridge

Technical information

>>Technical information
Technical information

We have been developing our unique steel structure, the LLENTAB system, since 1972.

LLENTAB delivers buildings of different sizes, structures, roof slopes, insulation, cladding, fire resistance and colour combinations. The permanent search for first-rate technical solutions and development of production facilities makes us one of the leading designers and producers of steel buildings in Europe. Profiles produced on high-tech lines enable us to deliver steel structures of buildings with unlimited sizes and spans of up to 100 m. Galvanised cold-bent profiles guarantee long-lasting quality and low steel consumption. Assembly with bolts permits the fast erection of structures and long-lasting protection against steel corrosion. All our profiles have holes pre-punched during the production process. This, along with the labelling of each profile, ensures correct assembly. LLENTAB uses profiles with thicknesses from 1.5 up to 7 mm. High-strength steel is used for all profiles up to a thickness of 7 mm. Our profiles are produced from hot-dip galvanised steel delivered to us in coils. For thinner profiles (up to 2 mm), a Z275 layer is used, while for the rest Z450 is standard. Profiles are roll-formed or bent into a variety of sizes and the shapes are Z (mainly for purlins and wall racks), C (for trusses, pillars and frame elements) and Ω (for the top and bottom flanges of the frame).

PDF with anchoring alternatives

1) Base foot   2) Structure pillar   3) Pillar coupling    4) Bolt, washer and nut   5) Anchor plate

Pillars

LLENTAB pillars are made from C profiles, starting with two connected C profiles up to truss pillars for very high buildings and halls with crane runways. Standard pillar types:

2xC pillars

  • 2xC170: thickness 3/4/5/6 mm
  • 2xC250: thickness 3/4/5/6 mm
  • 2xC300: thickness 5/6 mm
  • 2xC360: thickness 4/5/6 mm
  • 2xC380: thickness 6 mm

QUADRO (4xC) pillars

  • 4xC360: thickness 4/5/6 mm

Truss pillars (2 pairs of 2xC pillars at a distance of 500~1200 mm)

  • 4xC170: thickness 3/4/5/6 mm
  • 4xC250: thickness 3/4/5/6 mm
  • Can be a combination of 170 mm and 250 mm profiles
Pillar 2xC

2xC profile pillars

QUADRO pillar, 4xC

QUADRO, 4xC profile pillars

Truss pillars

Trusses pillars

Roof frame

The flexibility of the LLENTAB system creates the possibility of delivering different roof slopes according to customer needs. LLENTAB steel buildings can be designed with an insulated or uninsulated roof, with a pitched roof or mono-pitch roof (single slope) and with a roof slope of 1°, 2°, 3°, 4°, 6°, 7°, 11°, 14°, 17° or 21°. LLENTAB delivers several types of flat membrane roofs, panel roofs and ‘plate-wool-plate’ roofs with high insulation values and exceptional water and corrosion resistance.

Walls

Gable walls may be load-bearing or overhanging. Customise your building by choosing between uninsulated or insulated walls. Choose the appearance of your panels, which can be mounted vertically or horizontally.

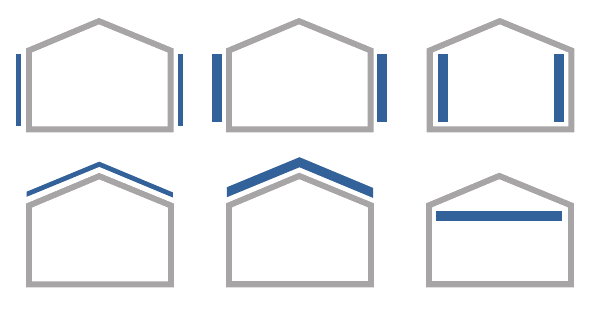

Cladding and Insulation

LLENTAB’s roof cladding provides high leakage protection thanks to pre-punched holes in plates and purlins. Our uninsulated roof is a combination of galvanised and colour-coated TP46 roof plating, placed on Z-shaped purlins. Additionally, the inner face of the plate is covered with a condensation reduction foil.

The uninsulated walls are smooth, stable and popular with our customers across Europe. If you change your needs, it is possible to add insulation afterwards. Several options are available for insulating your building against cold or heat, including the thickness of the insulation and the choice of exposed, clad or hidden pillars. In addition to our sandwich panels and standard steel sheet solutions, we can supply the optional SINUS profile or steel façade casing as required.

Wall insulation

(plate-insulation-plate from the outer side of pillars – Uc 0.23 for 220 mm of insulation)

LLENTAB wall insulation type 3

(type 3 plus cover pillars – Uc 0.23 for 220 mm of insulation)

LLENTAB wall insulation type 4

(vertical sandwich panels – Uc 0.22 for 100 mm of PUR or 180 mm of mineral wool)

LLENTAB wall insulation type 6

(interior sandwich panels – Uc 0,22 for 100 mm of PUR)

LLENTAB wall insulation type 6W

(horizontal sandwich panels – Uc 0,22 for 100mm of PUR or 180mm of mineral wool)

LLENTAB wall insulation type 7

Roof insulation

Roof insulation may be made of sandwich panels, plate-insulation-plate or blown. Insulation may serve as the ceiling or be placed on ceiling plates, between purlins or above purlins.

(Uc 0.18 for 300 mm of insulation)

LLENTAB roof insulation type 4

(Uc 0.18 for 250 mm of insulation)

LLENTAB roof insulation type 2

(Uc 0.17 for 250 mm of insulation)

LLENTAB roof insulation type 5

(Uc 0.18 for 200 mm of insulation)

LLENTAB roof insulation type SP

(Uc 0.18 for 200 mm of insulation)

LLENTAB roof insulation type SPH

(Uc 0.18 for 120 mm of insulation)

LLENTAB roof insulation type 6

(Uc 0.18 for 120 mm of insulation)

LLENTAB roof insulation type 6W

CE Certification

Quality assurance is carried out in accordance with the ISO 9001, EN 1090-1 and EN 1090-2 guidelines, as well as legislation in each country covering all subsidiaries within the Group. Construction work and manufacturing are checked annually against the requirements of EN 1090-1 and certified by the company’s A3 Certification.

Feel free to ask us about anything that interests you.

Your questions will be answered by one of our certified designers.
